REST API¶

REST authentication¶

This documentation is still sparse but all end-points are auto-documented. You should be able to access it on your server at ‘/api/explorer/’ URI (the trailing slash is important).

You can also see it in action on https://tuleap.net/api/explorer/

HTTP/1.1 200 OK
Content-Type: application/json; charset=utf-8

{
  "user_id": "115",
  "token": "abcd",
  "uri": "/api/tokens/abcd"
}

REST with XML¶

WARNING: It is possible that the REST API is not working properly using XML. It has been tested only on those endpoints so far:

• GET /artifacts/:id
• POST /artifacts
• PUT /artifacts/:id

Since Tuleap 7.11, the REST API of Tuleap supports XML as input and ouput. To do so, the first thing to do is to set properly these headers:

• Content-type: set at application/xml if you wish to send XML
• Accept: set at application/xml if you wish to receive XML from the REST api

Moreover, there is one main difference between inputs in JSON and inputs in XML as XML is not able to express array the same way JSON does. Therefore, you need to use the <item></item> element inform RESTLER that you are speaking about elements in an array. Here is a quick example of a POST using JSON and XML:

//JSON FORMAT

{
    "tracker": {"id": 16},
    "values": [
        {
            "field_id": 132,
            "value": "Test Release"
        },
        {
            "field_id": 134,
            "bind_value_ids": [126]
        }
    ]
}


// XML FORMAT

<request>
    <tracker>
        <id>16</id>
    </tracker>
    <values>
        <item>
            <field_id>132</field_id>
            <value>Test Release</value>
        </item>
        <item>
            <field_id>134</field_id>
            <bind_value_ids>
                <item>126</item>
            </bind_value_ids>
        </item>
    </values>
</request>

Managing Concurrency¶

Currently this is only available for tracker artifacts.

Every time you fetch an artifact via the route GET /artifacts/:id, it will return several headers. Among them there are two that allow you to detect the version of your artifact and ensure you will not overwrite changes that happened between the time you last fetched your artifact and your current update. These headers are

• Etag: a hash of the current artifact version
• Last-Modified: a timestamp of the last modification

If you want to ensure that your call to PUT /artifacts/:id updates the latest version then you need to tell the server so. To do this, you need to send your own headers in the request. You must send at least one of

• If-match- with the value you received in the Etag header when you last fetched the artifact, or
• If-Unmodified-Since: with the timestamp received in the Last-Modified header

As you can see, these headers go in pairs: (Etag/ If-match) and (Last-Modified/ If-Unmodified-Since).

If the value you provide does not match the value of the current version of the artifact, the API will throw 412 precondition failed.

Note: if you do not provide either the If-match or If-Unmodified-Since headers in your PUT /artifacts/:id request then no concurrency check will be done and the artifact will be overwritten.

JetBrains IDE integration with Tuleap trackers¶

Currently available data for an artifact are :

• ID
• Summary
• Description
• Creation date
• Last update date

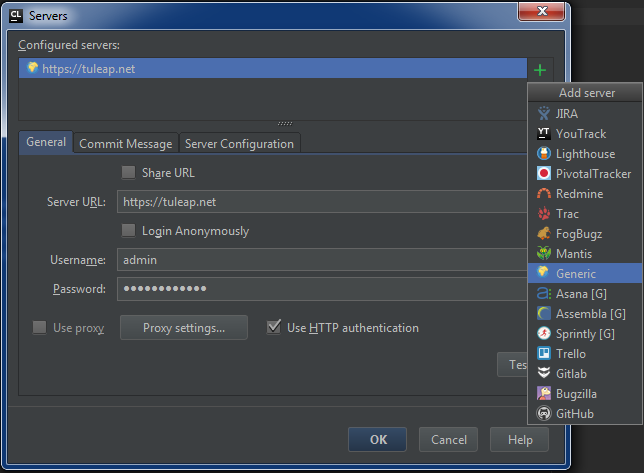

First, add a generic tracker server : Tools > Tasks & Contexts > Configure Servers ... Then add a Generic tracker server. Set :

• Server URL : Tuleap server (HTTPS Only)
• Username : Your Tuleap username
• Password : Your Tuleap password
• Check Use HTTP authentication

At this point, you cannot test your connection as JetBrains IDEs need a configured task list to test the connection.

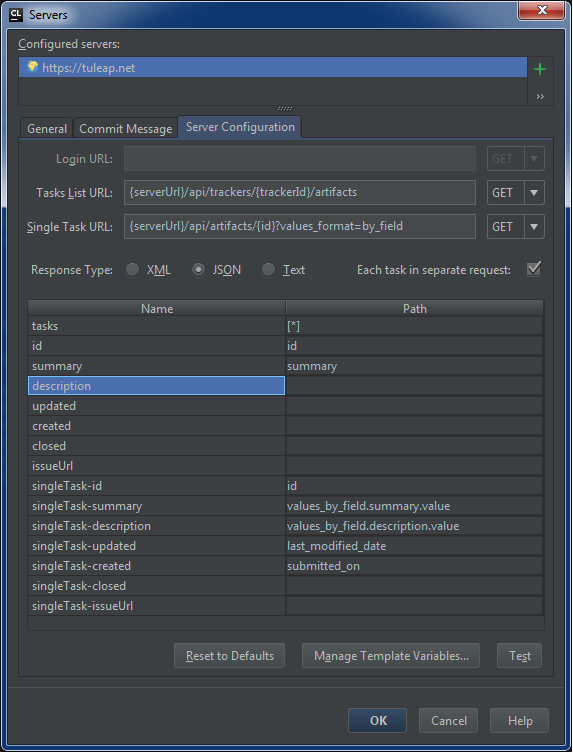

On the Server Configuration page, indicates the following parameters :

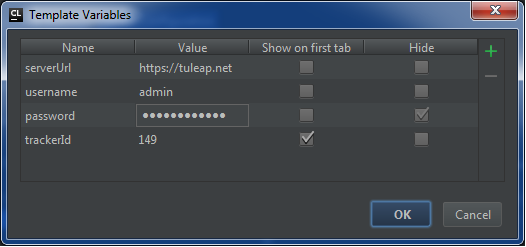

As displayed, there is a variable {trackerId}. You can set directly the selected tracker id on the URL or create a variable. Choose Manage Template Variables...

If you check Show on first tab, the selected field is displayed on General. Set the selected tracker id on the field.

On the Server Configuration page, you can choose the field id on the selectors :

• The line singleTask-id refers to the id of the id field
• The line singleTask-summary refers to the id of the summary field
• The line singleTask-description refers to the id of the description field
• The line singleTask-updated refers to the id of the last modification date field
• The line singleTask-created refers to the id of the submission date field

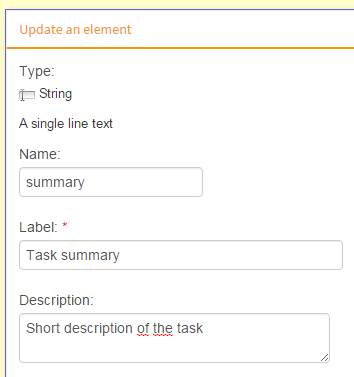

On the selected tracker, the field id needed are on the administration part :

On the Server Configuration page, the right part of the table is a JSONPath expression. It uses selector and can be changed following your tracker structure. To find the field, use the REST API Explorer plugin. For instance, the query https://tuleap.net:443/api/artifacts/1433?values_format=by_field produces :

{
  "id": 1433,
  "uri": "artifacts/1433",
  "tracker": {
    "id": 149,
    "uri": "trackers/149"
  },
  "project": {
    "id": 101,
    "uri": "projects/101"
  },
  "submitted_by": 344,
  "submitted_on": "2012-09-18T11:24:49+02:00",
  "html_url": "/plugins/tracker/?aid=1433",
  "changesets_uri": "artifacts/1433/changesets",
  "values": null,
  "values_by_field": {
    "summary": {
      "field_id": 1280,
      "type": "string",
      "label": "Summary",
      "value": "Migrate an existing repo to Gerrit"
    },
    "artifact_id": {
      "field_id": 1275,
      "type": "aid",
      "label": "Artifact ID",
      "value": 1433
    },
    "description": {
      "field_id": 1281,
      "type": "text",
      "label": "Description",
      "value": "I can use a gerrit workflow while having an official repo in Tuleap\r\nI have a barrier between contributions and my master branch\r\n\r\nsee user stories\r\n\r\nDiscussion on the Gerrit mailing list that details some implementation options\r\nhttps://groups.google.com/forum/?fromgroups=#!topic/repo-discuss/qggnIFKw3lw",
      "format": "text"
    }
  },
  "last_modified_date": "2013-02-04T11:06:36+01:00"
}

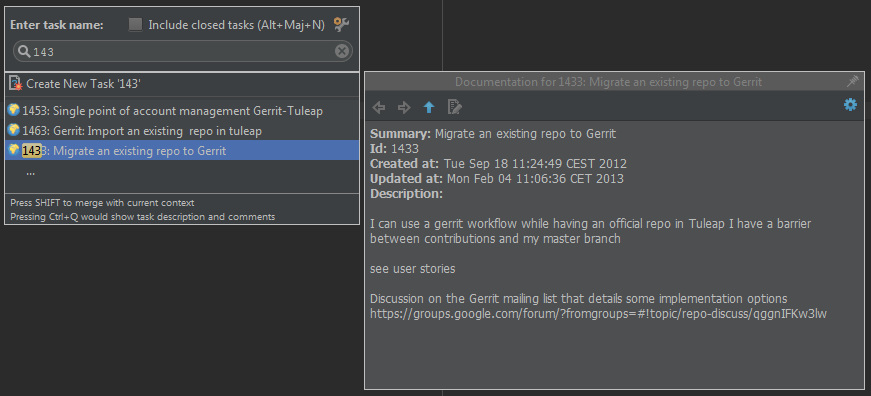

With the previous parameters, the task is displayed :

An issue may occur for using SNIExtension on the JVM. To fix it, add the flag -Djsse.enableSNIExtension=false on the .vmoptions files of your IDE.
